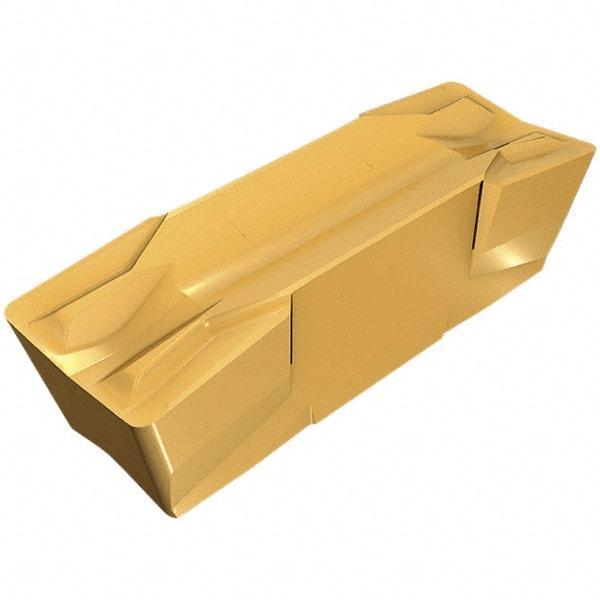

Iscar - 1000E120GIF Grade IC20, 10mm Cutting Width Carbide Grooving Insert - 27mm Max Depth of Cut, Neutral, 1.2mm Corner Radius, Uncoated
Item #: 60755717
Brand: Iscar
Model #: 6400052
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIF |
| Insert Size | 1000E120 |
| Material | Carbide |
| Cutting Width (mm) | 10.00 |
| Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 27.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Overall Length (mm) | 30.00 |
| Overall Length (Decimal Inch) | 1.1811 |
| Series | Cut Grip |
| Overall Width (mm) | 10.00 |
| Overall Width (Decimal Inch) | 0.3937 |
