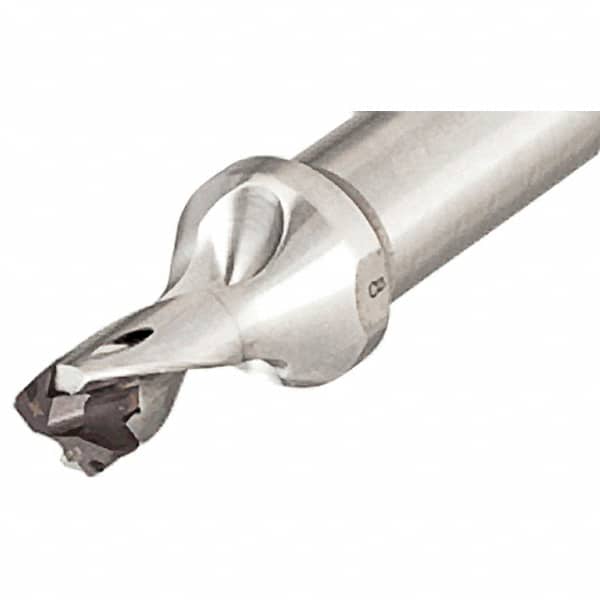

Iscar - 0.512" to 0.527" Diam, 1.5xD, 0.77" Max Depth, 5/8" Shank Diam, 3.35" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 13 Seat Size, 60698461 Toolholder, Series SumoCham
Item #: 60698461
Brand: Iscar
Model #: 3202631
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.5120 |
| Maximum Drill Diameter (Decimal Inch) | 0.5270 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.7700 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 13 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 1.4600 |
| Overall Length (Decimal Inch) | 3.3500 |
| Shank Length (Decimal Inch) | 1.8900 |
