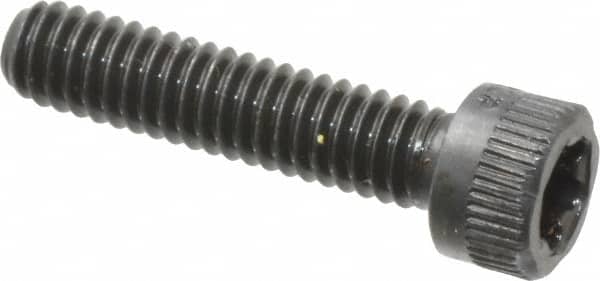

Camcar - #8-32 UNC Torx Plus Drive, Socket Cap Screw - Alloy Steel, Black Oxide Finish, Fully Threaded, 3/4" Length Under Head
Item #: 60643087
Brand: Camcar
Model #: 30177
Exact Tooling IR#: 04
Features and Benefits
Socket cap head types have large cylindrical heads with recessed hex-shaped drives. They are ideal for applications where limited clearance would not allow the use of wrenches and sockets.
Torx Plus fasteners require Torx Plus drivers to achieve full torque. Standard Torx drivers can also be used to tighten and loosen fasteners but will not achieve the same torque.
Alloy steel is the strongest of all steel types. It has high tensile strength and offers excellent resistance to wear, fatigue and galling.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Head Type | Socket Cap |
| Drive Type | Torx Plus |
| Thread Size (Inch) | #8-32 |
| Length Measurement Type | Length Under Head |
| Length (Inch) | 3/4 |
| Material | Alloy Steel |
| Finish/Coating | Black Oxide |
| Full or Partial Threading | Fully Threaded |
| Thread Standard | UNC |
| Fastener Standard | ANSI B2.2; ANSI B18.3; ANSI B18.8.2; MS16555 |
| Torx Drive Size | T25 |
