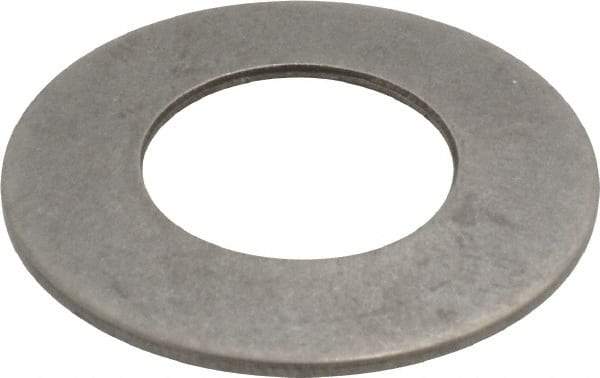

Made in USA - 0.559" ID, Grade 17-7 PH Stainless Steel, Belleville Disc Spring - 1.1" OD, 0.071" High, 0.0394" Thick
Item #: 60482189
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.5590 |
| Inside Diameter (mm) | 14.20 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 1.1000 |
| Outside Diameter (mm) | 27.94 |
| Thickness (mm) | 1.00 |
| Thickness (Decimal Inch) | 0.0394 |
| Overall Height (mm) | 1.80 |
| Overall Height (Decimal Inch) | 0.0710 |
| Deflection (Decimal Inch) | 0.016 to 0.029 |
| Deflection (mm) | 0.404 to 0.726 |
| Deflection to Flat (Decimal Inch) | 0.0320 |
| Deflection to Flat (mm) | 0.81 |
| Load at Deflection (Lb.) | 253.00 |
| Minimum Load at Deflection (Lb.) | 202.00 |
| Minimum Load at Deflection (N) | 898.00 |
| Maximum Load at Deflection (Lb.) | 302.00 |
| Maximum Load at Deflection (N) | 1343.00 |
| Hardness | Rockwell C38 |
| Fastener Standard | DIN 2092; DIN 2093 |
