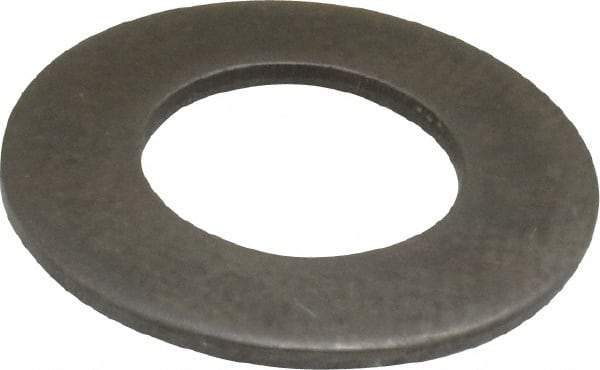

Made in USA - 0.323" ID, Grade 17-7 PH Stainless Steel, Belleville Disc Spring - 0.63" OD, 0.049" High, 0.035" Thick
Item #: 60482098
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.3230 |
| Inside Diameter (mm) | 8.20 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 0.6300 |
| Outside Diameter (mm) | 16.00 |
| Thickness (mm) | 0.89 |
| Thickness (Decimal Inch) | 0.0350 |
| Overall Height (mm) | 1.24 |
| Overall Height (Decimal Inch) | 0.0490 |
| Deflection (Decimal Inch) | 0.007 to 0.010 |
| Deflection (mm) | 0.178 to 0.249 |
| Deflection to Flat (Decimal Inch) | 0.0140 |
| Deflection to Flat (mm) | 0.36 |
| Load at Deflection (Lb.) | 230.00 |
| Minimum Load at Deflection (Lb.) | 170.00 |
| Minimum Load at Deflection (N) | 756.00 |
| Maximum Load at Deflection (Lb.) | 232.00 |
| Maximum Load at Deflection (N) | 1032.00 |
| Hardness | Rockwell C38 |
| Fastener Standard | DIN 2092; DIN 2093 |
