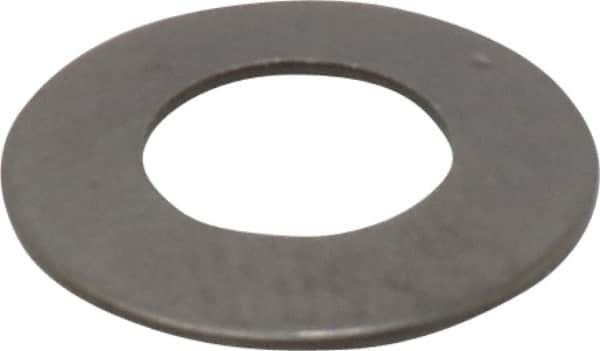

Made in USA - 0.244" ID, Grade 17-7 PH Stainless Steel, Belleville Disc Spring - 0.492" OD, 0.034" High, 0.02" Thick
Item #: 60482023
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.2440 |
| Inside Diameter (mm) | 6.20 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 0.4920 |
| Outside Diameter (mm) | 12.50 |
| Thickness (mm) | 0.51 |
| Thickness (Decimal Inch) | 0.0200 |
| Overall Height (mm) | 0.86 |
| Overall Height (Decimal Inch) | 0.0340 |
| Deflection (Decimal Inch) | 0.007 to 0.013 |
| Deflection (mm) | 0.178 to 0.249 |
| Deflection to Flat (Decimal Inch) | 0.0140 |
| Deflection to Flat (mm) | 0.36 |
| Load at Deflection (Lb.) | 72.00 |
| Minimum Load at Deflection (Lb.) | 52.00 |
| Minimum Load at Deflection (N) | 231.00 |
| Maximum Load at Deflection (Lb.) | 81.00 |
| Maximum Load at Deflection (N) | 360.00 |
| Hardness | Rockwell C38 |
| Fastener Standard | DIN 2092; DIN 2093 |
