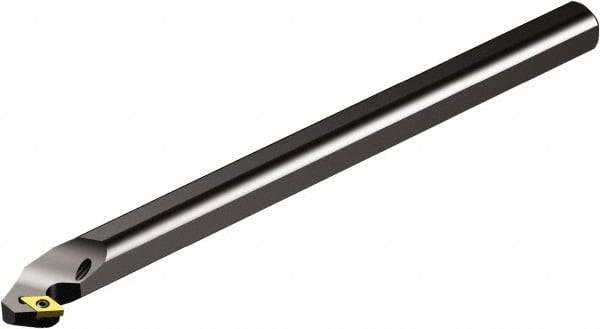

Sandvik Coromant - 40mm Min Bore Diam, 316.7mm OAL, 32mm Shank Diam, A..SDUCR/L..X Indexable Boring Bar - DCMT 3(2.5)2, DCMT 11 T3 08 Insert, Screw or Clamp Holding Method
Item #: 60435443
Brand: Sandvik Coromant
Model #: 5722400
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..SDUCR/L..X |
| Series | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 316.70 |
| Overall Length (Decimal Inch) | 12.4685 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Insert Compatibility | DCMT 3(2.5)2; DCMT 11 T3 08 |
| Through Coolant | Yes |
| Insert Holding Method | Screw or Clamp |
| Rake | Neutral |
| Neck Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | -3 |
| Back of Bar to Cutting Edge (mm) | 300.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 11.8110 |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Rake Angle | 0 |
| Complete Insert Compatibility | DCMT 3(2.5)2; DCMT 11 T3 08 |
| Toolholder Material | Steel |
