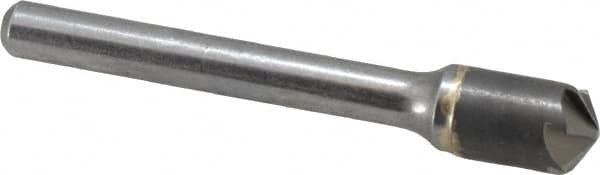

Made in USA - 3/8" Head Diam, 1/4" Shank Diam, 6 Flute 120° Solid Carbide Countersink - Bright Finish, 2-1/2" OAL, 0.062" Nose Diam, Single End, Straight Shank, Right Hand Cut
Item #: 60332244
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastic and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 3/8 |
| Number of Flutes | 6 |
| Included Angle | 120 |
| Countersink Material | Solid Carbide |
| Countersink Finish/Coating | Bright |
| Shank Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2-1/2 |
| Tip/Nose Diameter (Decimal Inch) | 0.0620 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| Centerline Angle | 60 |
