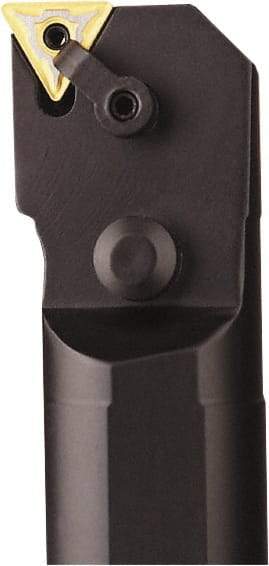

Seco - 1.53" Min Bore Diam, 14" OAL, A-MTFN Indexable Boring Bar - TNMG 332 Insert, Clamp Holding Method
Item #: 60311628
Brand: Seco
Model #: 41092
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MTFN |
| Series | Multi-Option |
| Minimum Bore Diameter (Decimal Inch) | 1.5300 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 14.0000 |
| Insert Compatibility | TNMG 332 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Rake | Negative |
| Lead Angle | 90 |
| Center to Cutting Edge (Decimal Inch) | 0.7650 |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -5 |
| Toolholder Material | Steel |
