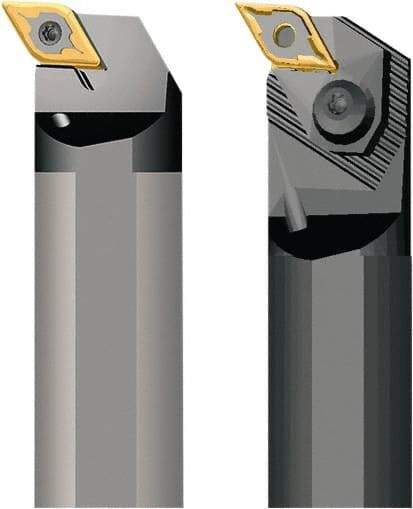

Seco - 0.98" Min Bore Diam, 10" OAL, 3/4" Shank Diam, A-SDUN Indexable Boring Bar - DNMU 332 Insert, Screw Holding Method
Item #: 60228376
Brand: Seco
Model #: 14822
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDUN |
| Series | Screw-On |
| Minimum Bore Diameter (Decimal Inch) | 0.9800 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 10.0000 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | DNMU 332 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 93 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | -5 |
| Complete Insert Compatibility | DNMU 332-FF2; DNMU 332-M3; DNMU 332-M5; DNMU 332-MF1; DNMU 332-MF2; DNMU 332-MF4; DNMU 332-MF5 |
| Toolholder Material | Steel |
