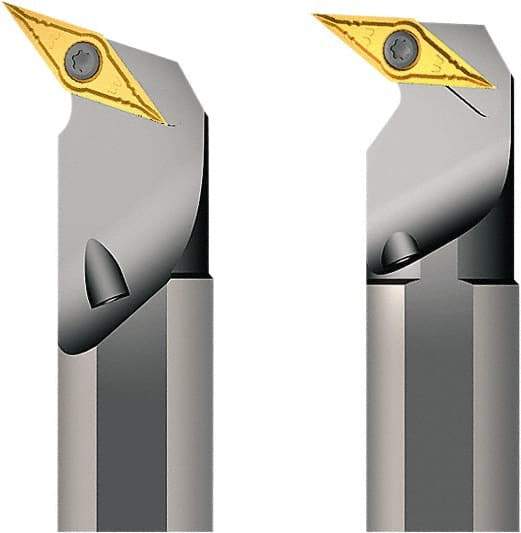

Seco - 50mm Min Bore Diam, 350mm OAL, 40mm Shank Diam, A-SVQB Indexable Boring Bar - 80mm Max Bore Depth, VB.. 1604.., VCG.. 1604.. Insert, Screw Holding Method
Item #: 60187184
Brand: Seco
Model #: 04425
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVQB |
| Series | Screw Lock |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 80.00 |
| Maximum Bore Depth (Decimal Inch) | 3.1496 |
| Overall Length (mm) | 350.00 |
| Overall Length (Decimal Inch) | 13.7795 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | VB.. 1604..; VCG.. 1604.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 107.5 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Rake Angle | 0 |
| Complete Insert Compatibility | VBGT 160401-F1; VBMT 160402-F1; VBMT 160404-F1; VBMT 160404-F2; VBMT 160408-F1; VBMT 160408-F2; VBMT 160412-F1; VBMT 160412-F2; VCGR 160404; VCGR 160408; VCGT 160402F-AL; VCGT 160404F-AL; VCGT 160408F-AL; VCGT 160412F-AL |
| Toolholder Material | Steel |
