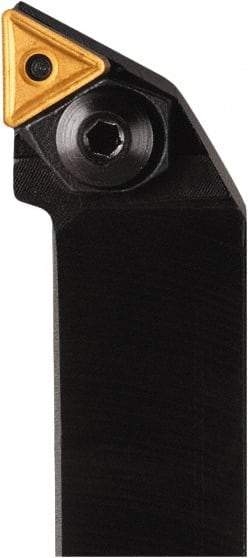

Seco - PTGN, Right Hand Cut, 90° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 300mm OAL, TNMG 2706.. Insert Compatibility, Series Pin & Wedge
Item #: 60182938
Brand: Seco
Model #: 04457
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PTGN |
| Rake | Negative |
| Rake Angle | -5 |
| Series | Pin & Wedge |
| Lead Angle | 90 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Insert Compatibility | TNMG 2706.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Wedge |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.9685 |
| Head Length (mm) | 38.00 |
| Head Length (Decimal Inch) | 1.4961 |
| Insert Inscribed Circle (Decimal Inch) | 0.6252 |
| Toolholder Material | Steel |
