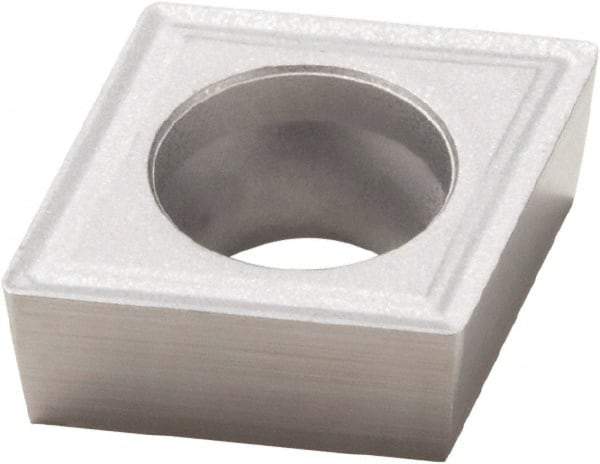

Seco - CCMT321 F2 Grade HX Carbide Turning Insert - Uncoated, 80° Diamond, 3/8" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 60179108
Brand: Seco
Model #: 11834
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 321 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | HX |
| Coating | Uncoated |
| Chip Breaker | F2 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Insert Holding Method | Screw |
| Shape | Diamond |
