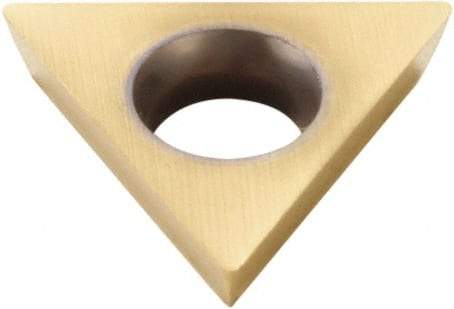

Seco - TDAB1.21.50 Grade CP500 Carbide Turning Insert - TiAlN/TiN Finish, 60° Triangle, 5/32" Inscr Circle, 3/64" Thick, 0.1mm Corner Radius
Item #: 60176773
Brand: Seco
Model #: 62587
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TDAB |
| Insert Size | 1.21.50 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 3/64 |
| Thickness (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | CP500 |
| Coating | TiAlN/TiN |
| Material Grade | Micrograin |
| Hole Diameter (Decimal Inch) | 0.0930 |
| Relief Angle | 15 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
