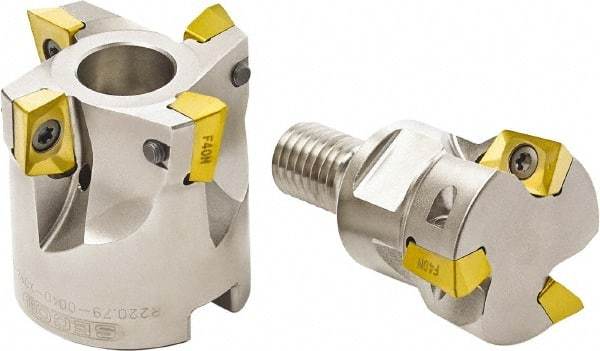

Seco - 63mm Cut Diam, 22mm Arbor Hole, 7mm Max Depth of Cut, 94° Indexable Chamfer & Angle Face Mill - 5 Inserts, XO.. 1204 Insert, Right Hand Cut, Through Coolant, Series R220.79
Item #: 60144557
Brand: Seco
Model #: 63995
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 94 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | XO.. 1204 |
| Series | R220.79 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Hub Diameter (mm) | 47.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum RPM | 13200 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | XOEX 120402R-M07; XOEX 120404FR-E06; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120408R-M07; XOEX 120408ZZR-M07; XOEX 120416FR-E06; XOEX 120416R-M07; XOEX 120420FR-E06; XOEX 120424R-M07; XOEX 120431FR-E06; XOEX 120431R-M07; XOEX 120440R-M07; XOEX 120450R-M |
