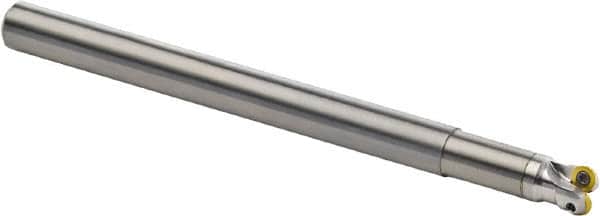

Seco - 10mm Cutting Diam, 10mm Shank Diam, 2.5mm Max Depth of Cut, Straight Shank Indexable Copy End Mill - 2 Inserts, RDH.. 0501 Insert, R217.29 Toolholder, Carbide
Item #: 60142585
Brand: Seco
Model #: 22322
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 2 |
| Insert Style | RDH.. 0501 |
| Toolholder Style | R217.29 |
| Overall Length (Decimal Inch) | 5.1180 |
| Insert Diameter (mm) | 5.00 |
| Insert Diameter (Decimal Inch) | 0.1969 |
| Insert Holding Method | Screw |
| Toolholder Material | Carbide |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Minimum Cutting Diameter (mm) | 5.00 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Shank Length (mm) | 100.00 |
| Shank Length (Decimal Inch) | 3.9370 |
| Maximum RPM | 75000 |
| Minimum Cutting Diameter (Decimal Inch) | 0.1969 |
