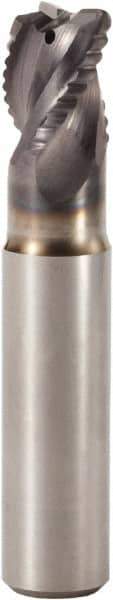

Seco - 16mm Diam, 34mm LOC, 3 Flute Solid Carbide 2mm Corner Radius Roughing End Mill - MEGA-T Finish, 95mm OAL, 16mm Shank Diam, Single End, Centercutting, 37.5° Helix
Item #: 60141637
Brand: Seco
Model #: 40523
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
MEGA-T is commonly used on aluminum, copper, titanium, graphite, hardened steels and plastic. MEGA-T is a proprietary coating exclusive to Seco Tools, Inc.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 16.00 |
| Mill Diameter (Decimal Inch) | 0.6299 |
| Number of Flutes | 3 |
| Length of Cut (mm) | 34.00 |
| Length of Cut (Decimal Inch) | 1.3386 |
| Shank Diameter (mm) | 16.00 |
| End Type | Corner Radius |
| Material | Solid Carbide |
| Finish/Coating | MEGA-T |
| Overall Length (mm) | 95.00 |
| Centercutting | Center Cutting |
| Helix Angle | 37.50 |
| Extended Reach | No |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Coolant Induced | Yes |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Mill Diameter Tolerance (mm) | -0.020 to -0.100 |
| Overall Length (Decimal Inch) | 3.7402 |
