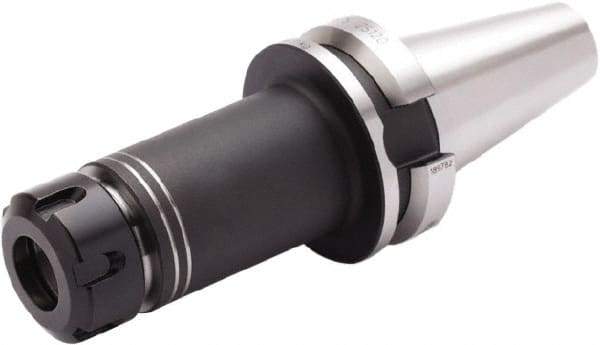

Seco - 0.02" to 0.394" Capacity, 120mm Projection, BT50 Taper Shank, ER16 Collet Chuck - 8.732" OAL
Item #: 60141595
Brand: Seco
Model #: 66012
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | BT50 |
| Projection (mm) | 120.00 |
| Projection (Decimal Inch) | 4.7280 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Maximum Collet Capacity (Decimal Inch) | 0.3940 |
| Overall Length (Decimal Inch) | 8.7320 |
| Nose Diameter (Decimal Inch) | 1.2600 |
| PSC Code | 5136 |
| TIR (Decimal Inch) | 0.0004 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 2.4800 |
