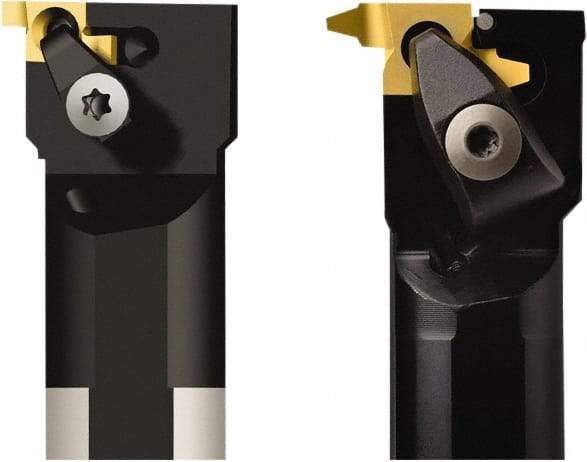

Seco - CN, Internal, Right Hand, 4.2mm Max Depth of Cut, 3 to 4.2mm Groove Width, Indexable Grooving Tool Holder - 14NR Insert Compatibility, 30mm Shank Height, 32mm Shank Width, 249.99mm OAL, Through Coolant
Item #: 60139524
Brand: Seco
Model #: 04264
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1654 |
| Maximum Depth of Cut (mm) | 4.20 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.20 |
| Maximum Groove Width (Decimal Inch) | 0.1654 |
| Overall Length (mm) | 249.99 |
| Overall Length (Decimal Inch) | 9.8420 |
| Toolholder Style | CN |
| Insert Compatibility | 14NR |
| Shank Height (mm) | 30.00 |
| Shank Height (Decimal Inch) | 1.1811 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2600 |
| Series | Snap Tap |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.8260 |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Complete Insert Compatibility | 14NR 1.6ST; 14NR 2.4DY; 14NR 3.0FG; 14NR 3.2FG; 14NR 3.4FG; 14NR 4.0FG; 14NR 4.2FG |
