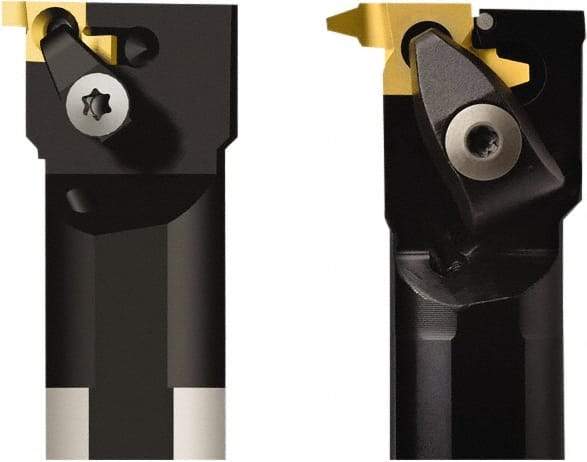

Seco - CN, Internal, Left Hand, 2.65mm Max Depth of Cut, 1.15 to 2.65mm Groove Width, Indexable Grooving Tool Holder - 10NL Insert Compatibility, 30mm Shank Height, 32mm Shank Width, 249.99mm OAL, Through Coolant
Item #: 60139516
Brand: Seco
Model #: 00430
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1043 |
| Maximum Depth of Cut (mm) | 2.65 |
| Minimum Groove Width (Decimal Inch) | 0.0453 |
| Minimum Groove Width (mm) | 1.15 |
| Maximum Groove Width (mm) | 2.65 |
| Maximum Groove Width (Decimal Inch) | 0.1043 |
| Overall Length (mm) | 249.99 |
| Overall Length (Decimal Inch) | 9.8420 |
| Toolholder Style | CN |
| Insert Compatibility | 10NL |
| Shank Height (mm) | 30.00 |
| Shank Height (Decimal Inch) | 1.1811 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2600 |
| Series | Snap Tap |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 19.51 |
| Center to Cutting Edge (Decimal Inch) | 0.7680 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
| Complete Insert Compatibility | 10NL 0.50FD; 10NL 0.80FD; 10NL 1.00FD; 10NL 1.15FG; 10NL 1.35FG; 10NL 1.65FG; 10NL 1.9FG; 10NL 2.15FG; 10NL 2.65FG |
