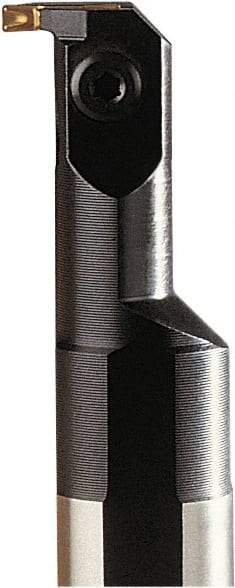

Seco - 25mm Min Bore Diam, 249.99mm OAL, 25mm Shank Diam, A-CGF Indexable Boring Bar - 64mm Max Bore Depth, LC.. 1304.. Insert, Clamp Holding Method
Item #: 60139318
Brand: Seco
Model #: 53963
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-CGF |
| Series | Multi-Directional Turning (MDT) |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 64.00 |
| Maximum Bore Depth (Decimal Inch) | 2.5197 |
| Overall Length (mm) | 249.99 |
| Overall Length (Decimal Inch) | 9.8420 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | LC.. 1304.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Profiling |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 19.00 |
| Center to Cutting Edge (Decimal Inch) | 0.7480 |
| Complete Insert Compatibility | LCGA 130402-0400-FG; LCGF 130402-0300-GG; LCGF 130402-GS; LCMF 130402-0300-FT; LCMF 130404-0300-FT; LCMF 130404-0300-MC; LCMF 1304M0-0300-MP; LCMR 130402-0300-FT; LCMR 130404-0300-FT; LCMR 1304M0-0300-MP |
| Toolholder Material | Steel |
