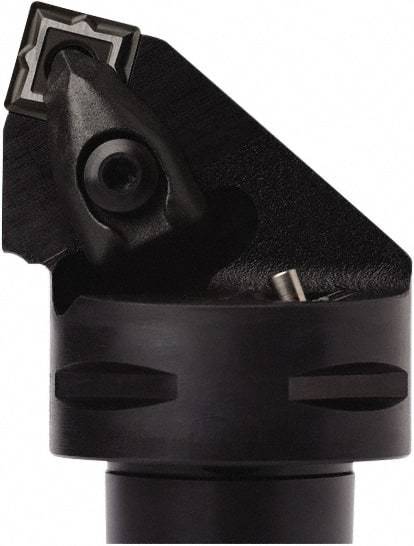

Seco - Right Hand Cut, Size C4, SNMG 543 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 22.1mm Ctr to Cutting Edge, 55.12mm Head Length, Series Seco-Capto
Item #: 60137924
Brand: Seco
Model #: 33849
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 55.12 |
| Head Length/Projection (Decimal Inch) | 2.1700 |
| Insert Style | SNMG 543 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 22.10 |
| Center to Cutting Edge (Decimal Inch) | 0.8700 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -6 |
| Neck Diameter (mm) | 39.88 |
| Neck Diameter (Decimal Inch) | 1.5700 |
| Complete Insert Compatibility | SNMG 543-M3; SNMG 543-M5; SNMG 543-MR4; SNMG 543-MR6; SNMG 543-MR7 |
