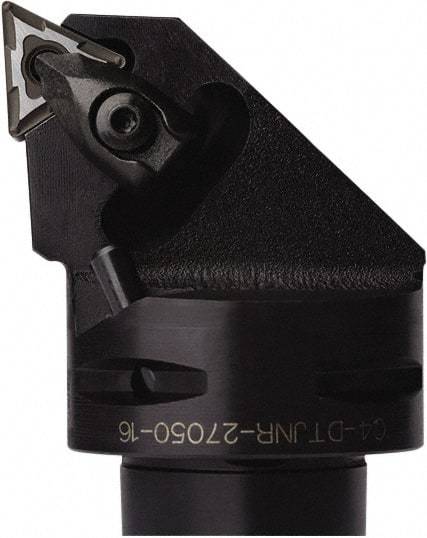

Seco - Right Hand Cut, Size C4, TNMG 332 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 26.92mm Ctr to Cutting Edge, 50.04mm Head Length, Series Seco-Capto
Item #: 60137700
Brand: Seco
Model #: 34003
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 50.04 |
| Head Length/Projection (Decimal Inch) | 1.9700 |
| Insert Style | TNMG 332 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 26.92 |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -6 |
| Neck Diameter (mm) | 39.88 |
| Neck Diameter (Decimal Inch) | 1.5700 |
| Complete Insert Compatibility | TNMG 332-FF1; TNMG 332-FF2; TNMG 332-M3; TNMG 332-M3(O); TNMG 332-M4; TNMG 332-M5; TNMG 332-MF2; TNMG 332-MF3; TNMG 332-MF4; TNMG 332-MF5; TNMG 332-MR4; TNMG 332-MR6; TNMG 332-MR7; TNMG 332L-UX; TNMG 332R-UX |
