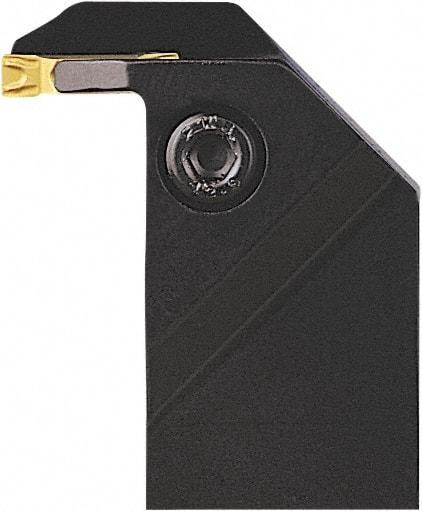

Seco - CGI, External, Left Hand, 15mm Max Depth of Cut, 5mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 1605.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 60135845
Brand: Seco
Model #: 27664
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | CGI |
| Insert Compatibility | LC.. 1605.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 5 |
| Back of Bar to Cutting Edge (mm) | 41.40 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.6299 |
| Maximum Groove Outside Diameter (mm) | 130.00 |
| Minimum Axial Groove Inside Diameter(mm) | 90.00 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 160500-0476-RP; LCGF 160502-0500-GG; LCGF 160502-0500-GS; LCGF 1605M0-0500-RP; LCGN 160502-0500-FG; LCGN 160502-0520-FG; LCGN 160504-0500E-LF; LCGN 160504-0500S-LF; LCGN 160507-0150L-D76; LCGN 160507-0150R-D76; LCGN 160507-0355-ST; LCGN 1605M0-0500E2 |
