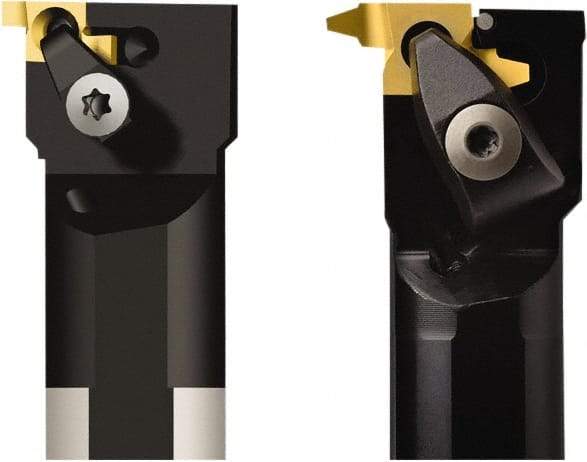

Seco - CN, Internal, Left Hand, 2.65mm Max Depth of Cut, 1.15 to 2.65mm Groove Width, Indexable Grooving Tool Holder - 10NL Insert Compatibility, 23mm Shank Height, 24.99mm Shank Width, 200mm OAL, Through Coolant
Item #: 60135555
Brand: Seco
Model #: 00427
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1043 |
| Maximum Depth of Cut (mm) | 2.65 |
| Minimum Groove Width (Decimal Inch) | 0.0453 |
| Minimum Groove Width (mm) | 1.15 |
| Maximum Groove Width (mm) | 2.65 |
| Maximum Groove Width (Decimal Inch) | 0.1043 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Toolholder Style | CN |
| Insert Compatibility | 10NL |
| Shank Height (mm) | 23.00 |
| Shank Height (Decimal Inch) | 0.9055 |
| Shank Width/Diameter (mm) | 24.99 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Series | Snap Tap |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 16.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6300 |
| Head Length (mm) | 28.00 |
| Head Length (Decimal Inch) | 1.1024 |
| Complete Insert Compatibility | 10NL 0.50FD; 10NL 0.80FD; 10NL 1.00FD; 10NL 1.15FG; 10NL 1.35FG; 10NL 1.65FG; 10NL 1.9FG; 10NL 2.15FG; 10NL 2.65FG |
