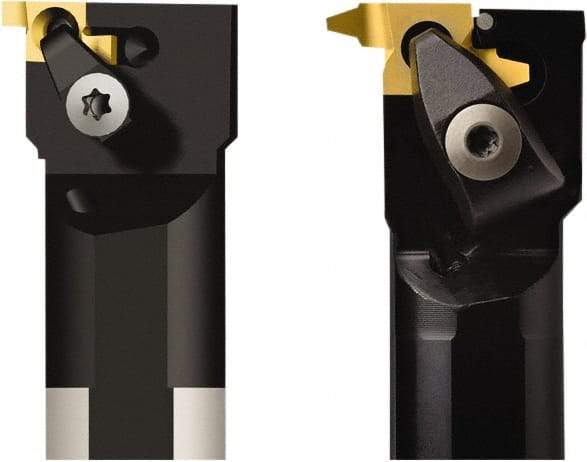

Seco - CN, Internal, Left Hand, 2.65mm Max Depth of Cut, 1.15 to 2.65mm Groove Width, Indexable Grooving Tool Holder - 10NL Insert Compatibility, 18mm Shank Height, 19.99mm Shank Width, 170mm OAL, Through Coolant
Item #: 60132487
Brand: Seco
Model #: 00424
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1043 |
| Maximum Depth of Cut (mm) | 2.65 |
| Minimum Groove Width (Decimal Inch) | 0.0453 |
| Minimum Groove Width (mm) | 1.15 |
| Maximum Groove Width (mm) | 2.65 |
| Maximum Groove Width (Decimal Inch) | 0.1043 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6930 |
| Toolholder Style | CN |
| Insert Compatibility | 10NL |
| Shank Height (mm) | 18.00 |
| Shank Height (Decimal Inch) | 0.7087 |
| Shank Width/Diameter (mm) | 19.99 |
| Shank Width/Diameter (Decimal Inch) | 0.7870 |
| Series | Snap Tap |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 13.49 |
| Center to Cutting Edge (Decimal Inch) | 0.5310 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Complete Insert Compatibility | 10NL 0.50FD; 10NL 0.80FD; 10NL 1.00FD; 10NL 1.15FG; 10NL 1.35FG; 10NL 1.65FG; 10NL 1.9FG; 10NL 2.15FG; 10NL 2.65FG |
