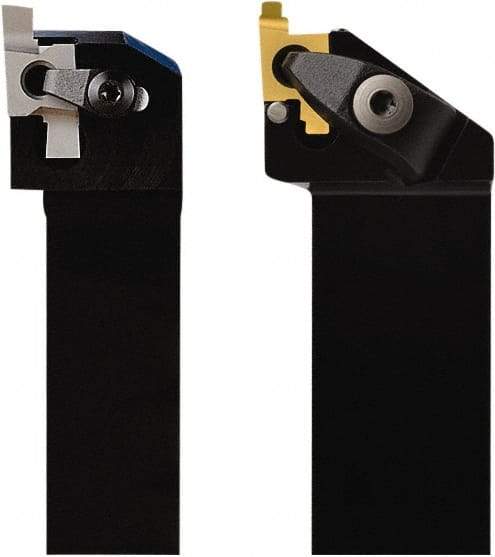

Seco - CE, External, Left Hand, 4.2mm Max Depth of Cut, 3 to 4.2mm Groove Width, Indexable Grooving Tool Holder - 14EL Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 60131463
Brand: Seco
Model #: 40858
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1654 |
| Maximum Depth of Cut (mm) | 4.20 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 4.20 |
| Maximum Groove Width (Decimal Inch) | 0.1654 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | CE |
| Insert Compatibility | 14EL |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Complete Insert Compatibility | 14EL 3.0FG; 14EL 3.2FG; 14EL 3.4FG; 14EL 4.0FG; 14EL 4.2FG |
