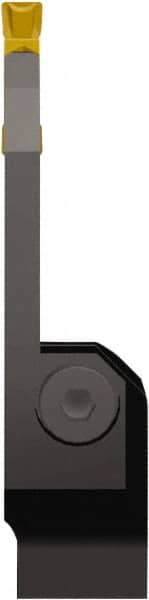

Seco - CFS, External, Right Hand, 40mm Max Depth of Cut, 5mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 1605.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 170mm OAL
Item #: 60131448
Brand: Seco
Model #: 56970
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 40.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | CFS |
| Insert Compatibility | LC.. 1605.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 5 |
| Back of Bar to Cutting Edge (mm) | 26.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0433 |
| Head Length (mm) | 66.00 |
| Head Length (Decimal Inch) | 2.5984 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 160500-0476-RP; LCGF 160502-0500-GG; LCGF 160502-0500-GS; LCGF 1605M0-0500-RP; LCGN 160502-0500-FG; LCGN 160502-0520-FG; LCGN 160504-0500E-LF; LCGN 160504-0500S-LF; LCGN 160507-0150L-D76; LCGN 160507-0150R-D76; LCGN 160507-0355-ST; LCGN 1605M0-0500E2 |
