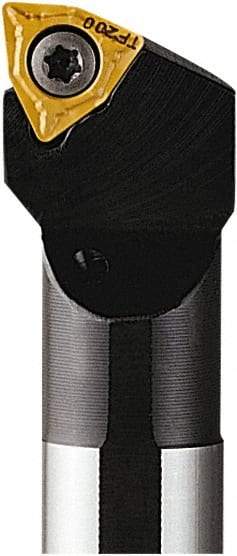

Seco - 25mm Min Bore Diam, 180mm OAL, 20mm Shank Diam, A-SWLC Indexable Boring Bar - 37mm Max Bore Depth, WCMT 06T3.. Insert, Screw Holding Method
Item #: 60131000
Brand: Seco
Model #: 55236
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SWLC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 25.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9843 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 37.00 |
| Maximum Bore Depth (Decimal Inch) | 1.4567 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | WCMT 06T3.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | 0 |
| Complete Insert Compatibility | WCMT 06T308-F1 |
| Toolholder Material | Steel |
