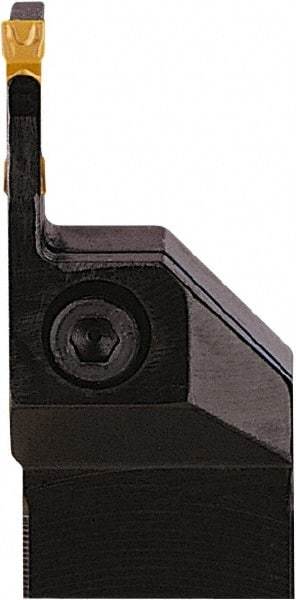

Seco - CFM, External, Right Hand, 40mm Max Depth of Cut, 8mm Min Groove Width, Indexable Grooving Tool Holder - LC.. 3008.. Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 170mm OAL
Item #: 60130960
Brand: Seco
Model #: 23576
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.5748 |
| Maximum Depth of Cut (mm) | 40.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Minimum Groove Width (mm) | 8.00 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Toolholder Style | CFM |
| Insert Compatibility | LC.. 3008.. |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Multi-Directional Turning (MDT) |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Insert Seat Size | 8 |
| Back of Bar to Cutting Edge (mm) | 28.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1024 |
| Head Length (mm) | 74.00 |
| Head Length (Decimal Inch) | 2.9134 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | LCGF 300804-0800-GG; LCGF 300804-0800-GS; LCGF 3008M0-0800-RP; LCGF 3008M0-1000-RP; LCMF 300804-0800-FT; LCMF 300808-0800-FT; LCMF 300808-1000-FT; LCMF 300812-0800-FT; LCMF 300812-1000-FT; LCMF 3008M0-0800-MP; LCMF 3008M0-1000-MP; LCMR 300808-0800-FT |
