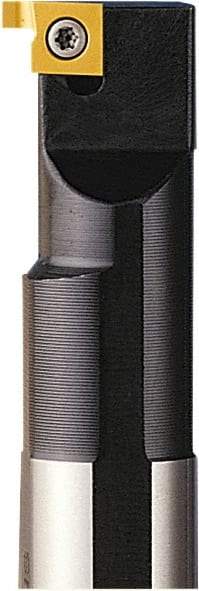

Seco - SN, Internal, Right Hand, 2.65mm Max Depth of Cut, 1.15 to 2.65mm Groove Width, Indexable Grooving Tool Holder - 9NR Insert Compatibility, 9.5mm Shank Width, 100mm OAL
Item #: 60129806
Brand: Seco
Model #: 25330
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1043 |
| Maximum Depth of Cut (mm) | 2.65 |
| Minimum Groove Width (Decimal Inch) | 0.0453 |
| Minimum Groove Width (mm) | 1.15 |
| Maximum Groove Width (mm) | 2.65 |
| Maximum Groove Width (Decimal Inch) | 0.1043 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Toolholder Style | SN |
| Insert Compatibility | 9NR |
| Shank Width/Diameter (mm) | 9.50 |
| Shank Width/Diameter (Decimal Inch) | 0.3740 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Maximum Hole Depth (Decimal Inch) | 0.7874 |
| Center to Cutting Edge (mm) | 7.50 |
| Center to Cutting Edge (Decimal Inch) | 0.2953 |
| Head Length (mm) | 20.00 |
| Head Length (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility | 9NR 1.15FG; 9NR 1.35FG; 9NR 1.65FG; 9NR 1.9FG; 9NR 2.15FG; 9NR 2.65FG |
