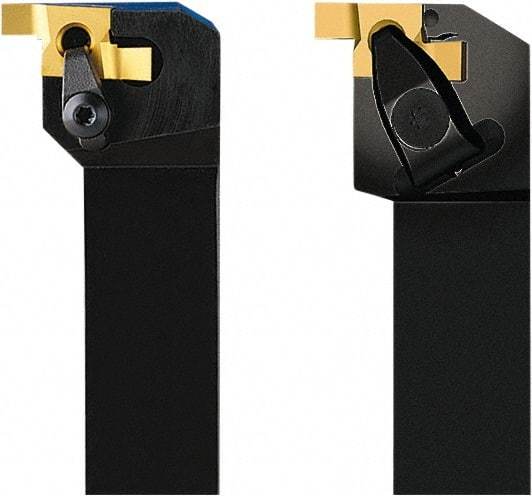

Seco - CEA, External, Right Hand, 2.5mm Max Depth of Cut, 2.5mm Max Groove Width, Indexable Grooving Tool Holder - 10EAR Insert Compatibility, 24.99mm Shank Height, 24.99mm Shank Width, 149.99mm OAL
Item #: 60129574
Brand: Seco
Model #: 00420
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Groove Width (mm) | 2.50 |
| Maximum Groove Width (Decimal Inch) | 0.0984 |
| Overall Length (mm) | 149.99 |
| Overall Length (Decimal Inch) | 5.9050 |
| Toolholder Style | CEA |
| Insert Compatibility | 10EAR |
| Shank Height (mm) | 24.99 |
| Shank Height (Decimal Inch) | 0.9840 |
| Shank Width/Diameter (mm) | 24.99 |
| Shank Width/Diameter (Decimal Inch) | 0.9840 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 35.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3780 |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8660 |
| Complete Insert Compatibility | 10EAR 2.5FA |
