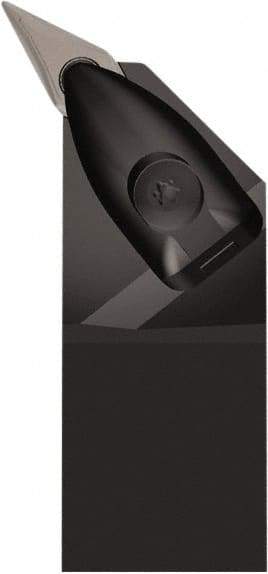

Seco - DVPN, Left Hand Cut, 117.5° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, VN..1604.. Insert Compatibility, Series Dual Clamp
Item #: 60129335
Brand: Seco
Model #: 34428
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DVPN |
| Rake | Negative |
| Rake Angle | -4.5 |
| Series | Dual Clamp |
| Lead Angle | 117.5 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | VN..1604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 41.00 |
| Head Length (Decimal Inch) | 1.6142 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Toolholder Material | Steel |
