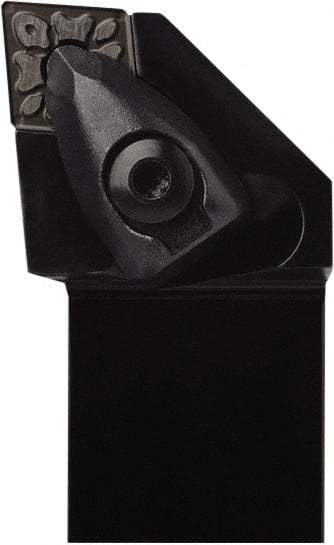

Seco - DCLN, Left Hand Cut, 95° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 200mm OAL, CNM..1906.. Insert Compatibility, Series Dual Clamp
Item #: 60129269
Brand: Seco
Model #: 34121
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DCLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Dual Clamp |
| Lead Angle | 95 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Insert Compatibility | CNM..1906.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.9685 |
| Head Length (mm) | 40.00 |
| Head Length (Decimal Inch) | 1.5748 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Toolholder Material | Steel |
