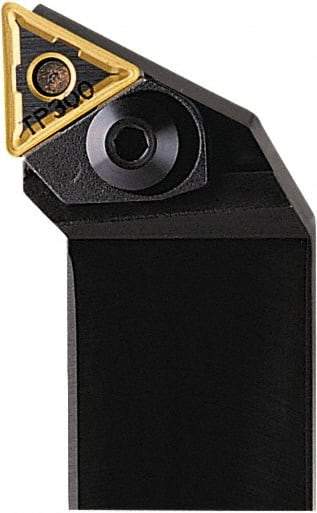

Seco - PTJN, Left Hand Cut, 93° Lead Angle, 40mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 200mm OAL, TNM..2204.. Insert Compatibility, Series Pin & Wedge
Item #: 60129178
Brand: Seco
Model #: 92179
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PTJN |
| Rake | Negative |
| Rake Angle | -5 |
| Series | Pin & Wedge |
| Lead Angle | 93 |
| Shank Width (mm) | 32.00 |
| Shank Width (Decimal Inch) | 1.2598 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Insert Compatibility | TNM..2204.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Wedge |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.5748 |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
