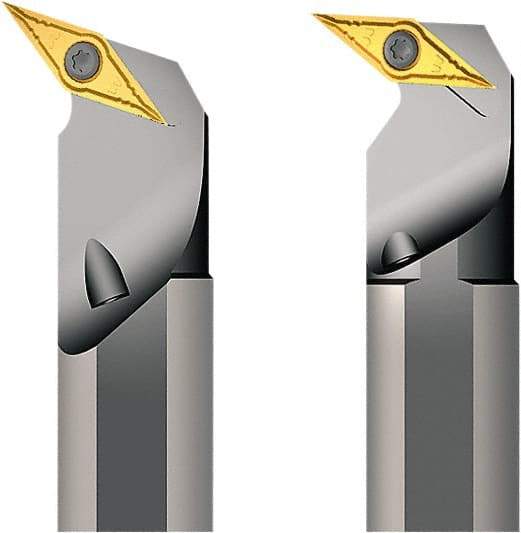

Seco - 22mm Min Bore Diam, 200mm OAL, 16mm Shank Diam, A-SVUB Indexable Boring Bar - 25mm Max Bore Depth, VB.T 1102.. Insert, Screw Holding Method
Item #: 60127826
Brand: Seco
Model #: 15329
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVUB |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 22.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.8661 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 25.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | VB.T 1102.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | VBGT 110201-F1; VBMT 110202-F1; VBMT 110202-MF2; VBMT 110204-F1; VBMT 110204-MF2; VBMT 110208-F1 |
| Toolholder Material | Steel |
