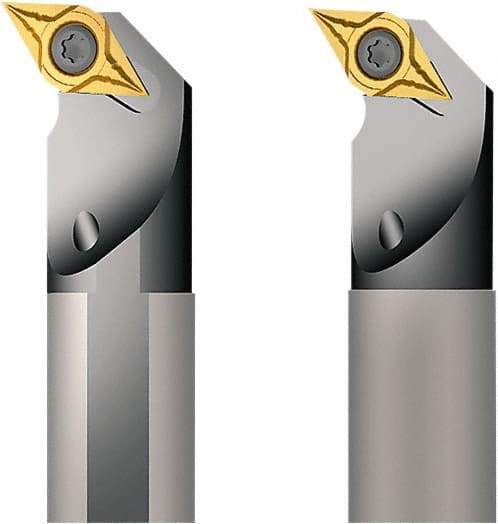

Seco - 22mm Min Bore Diam, 180mm OAL, 16mm Shank Diam, A-SDUC Indexable Boring Bar - 22mm Max Bore Depth, DC.. 0702.. Insert, Screw Holding Method
Item #: 60127347
Brand: Seco
Model #: 15421
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDUC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 22.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.8661 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 22.00 |
| Maximum Bore Depth (Decimal Inch) | 0.8661 |
| Overall Length (mm) | 180.00 |
| Overall Length (Decimal Inch) | 7.0866 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | DC.. 0702.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 93 |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | DCGT 0702005-F1; DCGT 070201-F1; DCGT 070202F-AL; DCGT 070204F-AL; DCGW 07020; DCGW 070202S-01020-L1-B; DCGW 070202S-01525-L1-B; DCGW 070204E-L1-B; DCGW 070204S-01020-L1-B; DCGW 070204S-01525-L1-B; DCGW 070204S-02020-L1-B; DCGW 070204S25-02020-L1-B |
| Toolholder Material | Steel |
