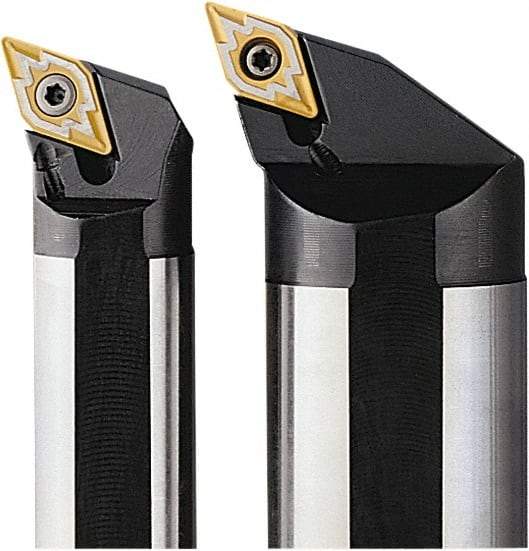

Seco - 20mm Min Bore Diam, 150mm OAL, 16mm Shank Diam, A-SDQN Indexable Boring Bar - 20mm Max Bore Depth, Screw Holding Method
Item #: 60127297
Brand: Seco
Model #: 83822
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDQN |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 20.00 |
| Maximum Bore Depth (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Negative |
| Lead Angle | 107.5 |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Insert Inscribed Circle (mm) | 9.52 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Rake Angle | -5 |
| Toolholder Material | Steel |
