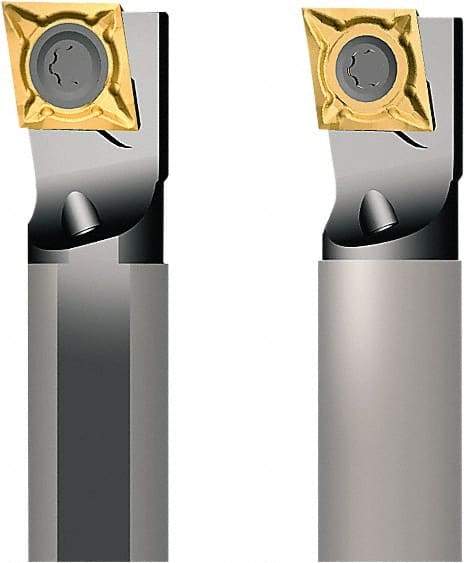

Seco - 13mm Min Bore Diam, 140mm OAL, 10mm Shank Diam, A-SCFC Indexable Boring Bar - 18mm Max Bore Depth, CC.. 0602.. Insert, Screw Holding Method
Item #: 60127065
Brand: Seco
Model #: 15097
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCFC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 13.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5118 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 18.00 |
| Maximum Bore Depth (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 140.00 |
| Overall Length (Decimal Inch) | 5.5118 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Compatibility | CC.. 0602.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 90 |
| Center to Cutting Edge (mm) | 7.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2756 |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Insert Inscribed Circle (mm) | 6.35 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CCGT 0602005-F1; CCGT 060201-F1; CCGT 060201-MF2; CCGT 060202F-AL; CCGT 060204-F1; CCGT 060204-MF2; CCGT 060204F-AL; CCGT 060204L-UX; CCGT 060204R-UX; CCGW 0602; CCGW 060202S-01020-LF; CCGW 060204E-L1-B; CCGW 060204S-01020-LF; CCGW 060204S-01525-L1-B |
| Toolholder Material | Steel |
