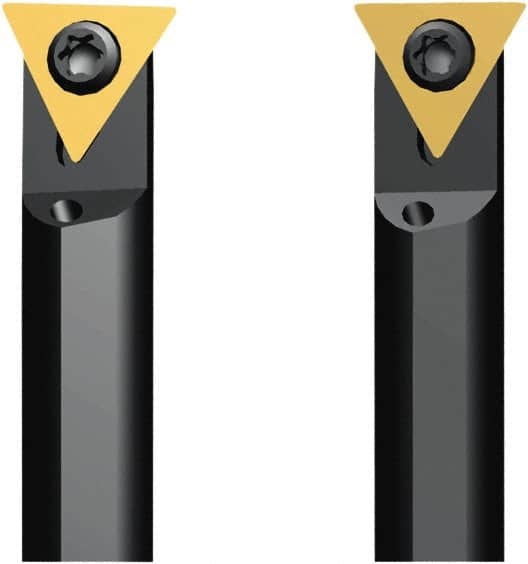

Seco - 7.2mm Min Bore Diam, 70mm OAL, 6mm Shank Diam, A-STLD Indexable Boring Bar - 10.2mm Max Bore Depth, TDAB 06T0.. Insert, Screw Holding Method
Item #: 60126760
Brand: Seco
Model #: 54777
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 7.20 |
| Minimum Bore Diameter (Decimal Inch) | 0.2835 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 10.20 |
| Maximum Bore Depth (Decimal Inch) | 0.4016 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Insert Compatibility | TDAB 06T0.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 3.50 |
| Center to Cutting Edge (Decimal Inch) | 0.1378 |
| Insert Thickness (Decimal Inch) | 0.0470 |
| Insert Inscribed Circle (mm) | 4.06 |
| Insert Inscribed Circle (Decimal Inch) | 0.1598 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TDAB 06T002; TDAB 06T004; TDAB 06T0005 |
| Toolholder Material | Steel |
