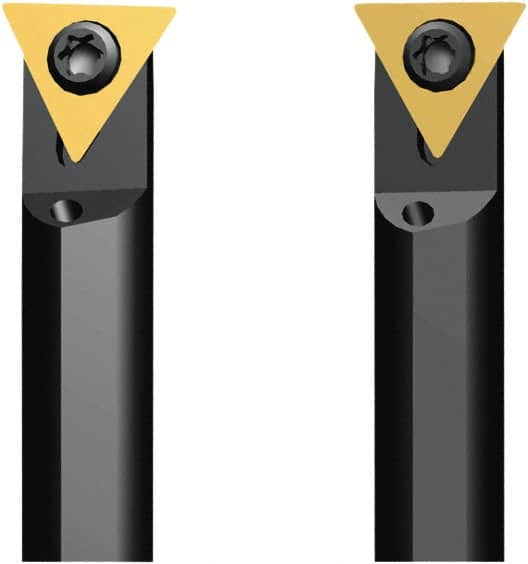

Seco - 6.8mm Min Bore Diam, 60mm OAL, 5mm Shank Diam, A-STLD Indexable Boring Bar - 9.7mm Max Bore Depth, TDAB 06T0.. Insert, Screw Holding Method
Item #: 60126745
Brand: Seco
Model #: 54768
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-STLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 6.80 |
| Minimum Bore Diameter (Decimal Inch) | 0.2677 |
| Hand of Holder | Left Hand |
| Maximum Bore Depth (mm) | 9.70 |
| Maximum Bore Depth (Decimal Inch) | 0.3819 |
| Overall Length (mm) | 60.00 |
| Overall Length (Decimal Inch) | 2.3622 |
| Shank Diameter (mm) | 5.00 |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Insert Compatibility | TDAB 06T0.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 3.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1181 |
| Insert Thickness (Decimal Inch) | 0.0470 |
| Insert Inscribed Circle (mm) | 4.06 |
| Insert Inscribed Circle (Decimal Inch) | 0.1598 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TDAB 06T002; TDAB 06T004; TDAB 06T0005 |
| Toolholder Material | Steel |
