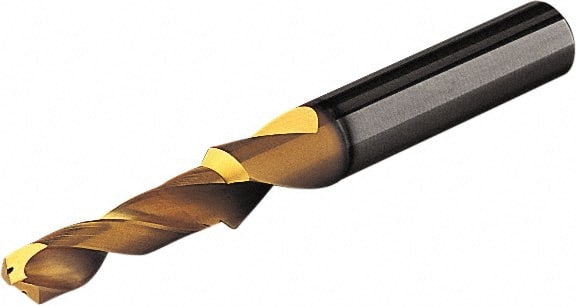

Screw Machine Length Drill Bit: 0.1339″ Dia, 140 °, Solid Carbide Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SD203A
Item #: 60125861
Brand: Seco
Model #: 02500323
Product Specifications
| Drill Bit Size (mm) | 3.40 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Drill Bit Size (Decimal Inch) | 0.1339 |
| Overall Length (mm) | 66.00 |
| Overall Length (Decimal Inch) | 2.5984 |
| Shank Diameter (mm) | 6.00 |
| Series | SD203A |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.4488 |
| Maximum Drilling Depth (mm) | 11.40 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0.004 to +0.016 mm |
| Flute Length (Decimal Inch) | 1.0236 |
| Flute Length (mm) | 26.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
| Specification Number | DIN 6537A |
| Specification Designation | DIN |
