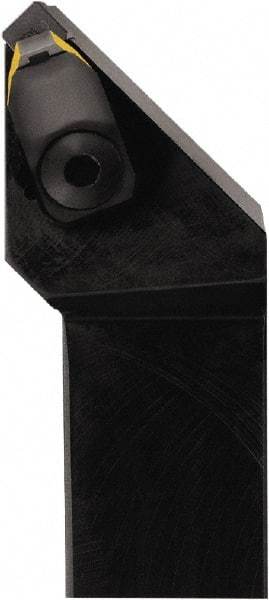

Seco - CSSN, Right Hand Cut, 45° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 154.2mm OAL, SN..0603.. Insert Compatibility, Series Clamp Lock
Item #: 60124815
Brand: Seco
Model #: 05870
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | CSSN |
| Rake | Negative |
| Rake Angle | -7 |
| Series | Clamp Lock |
| Lead Angle | 45 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 154.20 |
| Overall Length (Decimal Inch) | 6.0709 |
| Insert Compatibility | SN..0603.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 27.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0945 |
| Head Length (mm) | 26.00 |
| Head Length (Decimal Inch) | 1.0236 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
