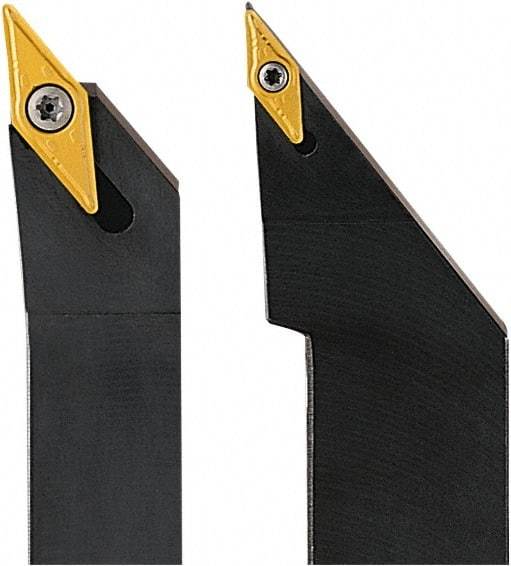

Seco - SVJB, Left Hand Cut, 93° Lead Angle, 16mm Shank Height x 16mm Shank Width, Neutral Rake Indexable Turning Toolholder - 100mm OAL, VB.T 1102.. Insert Compatibility, Series Screw Lock
Item #: 60123692
Brand: Seco
Model #: 65783
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SVJB |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw Lock |
| Lead Angle | 93 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | VB.T 1102.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 27.00 |
| Head Length (Decimal Inch) | 1.0630 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
