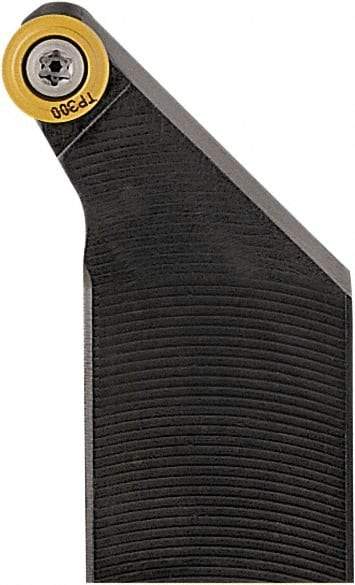

Seco - SRSC, Left Hand Cut, 32mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 170mm OAL, RCMT 1204 Insert Compatibility, Series Screw Lock
Item #: 60123270
Brand: Seco
Model #: 43137
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SRSC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw Lock |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | RCMT 1204 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 23.00 |
| Head Length (Decimal Inch) | 0.9055 |
| Insert Inscribed Circle (Decimal Inch) | 0.4724 |
| Toolholder Material | Steel |
