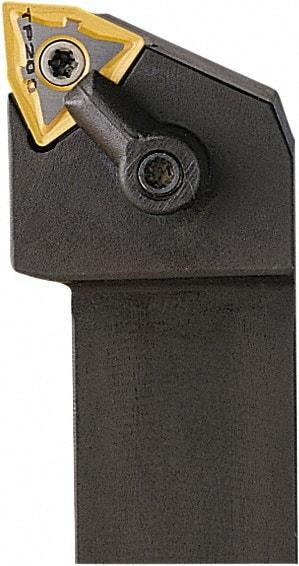

Seco - MWLN, Left Hand Cut, 95° Lead Angle, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, WN..0804.. Insert Compatibility, Series Multi-Option
Item #: 60120755
Brand: Seco
Model #: 02235
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | MWLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Multi-Option |
| Lead Angle | 95 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | WN..0804.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
