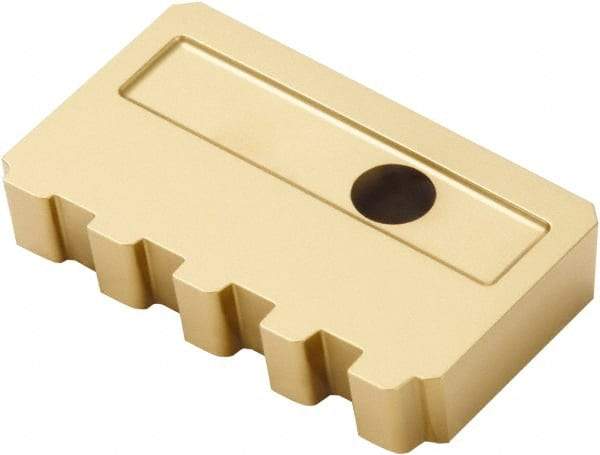

Seco - Type 2 C-5003 & C-5003-96 Grade CP250T, Internal API Buttress Threading Insert - 5 TPI Int Pitch, Carbide
Item #: 60118676
Brand: Seco
Model #: 19995
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | Type 2 |
| Thread Type | Internal |
| Thread Standard | API Buttress |
| Manufacturer's Grade | CP250T |
| Internal Pitch/TPI | 5 TPI |
| Material | Carbide |
| Width of Cutting Tip (mm) | 22.52 |
| Width of Cutting Tip (Decimal Inch) | 0.8865 |
| Thickness (mm) | 5.00 |
| Thickness (Decimal Inch) | 0.1970 |
| Chipbreaker | C-5003, C-5003-96 |
| Tip to Top of Insert (mm) | 15.89 |
| Tip to Top of Insert (Decimal Inch) | 0.6255 |
