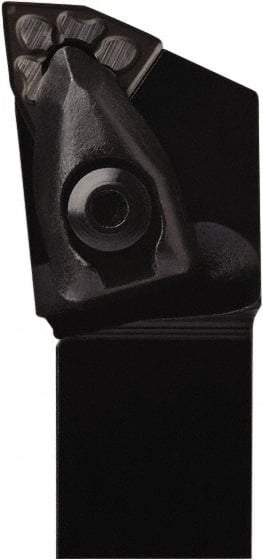

Seco - DWLN, Left Hand Cut, 95° Lead Angle, 16mm Shank Height x 16mm Shank Width, Negative Rake Indexable Turning Toolholder - 100mm OAL, WN..0604.. Insert Compatibility, Series Dual Clamp
Item #: 60118189
Brand: Seco
Model #: 34455
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | DWLN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | Dual Clamp |
| Lead Angle | 95 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | WN..0604.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 31.00 |
| Head Length (Decimal Inch) | 1.2205 |
| Insert Inscribed Circle (Decimal Inch) | 0.3748 |
| Toolholder Material | Steel |
