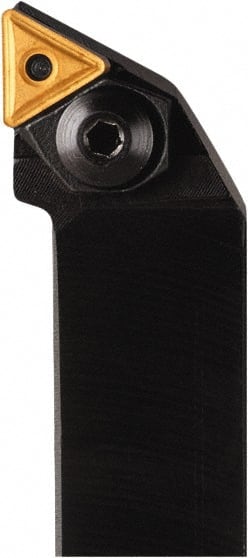

Seco - LH PTGNL -5° Negative Rake Indexable Turning Toolholder
Item #: 60118106
Brand: Seco
Model #: 75011262
Product Specifications
| Hand of Holder | Left Hand |
| Toolholder Style | PTGNL |
| Rake | Negative |
| Rake Angle | -5 |
| Series | Pin & Wedge |
| Lead Angle | 90 |
| Shank Width (mm) | 16.00 |
| Shank Width (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Insert Compatibility | TN..1103.. |
| Multi-Use Tool | No |
| Insert Holding Method | Pin & Wedge |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7874 |
| Head Length (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.6299 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Toolholder Material | Steel |
| Through Coolant | No |
| OverallLength (mm) | 100.00 |
