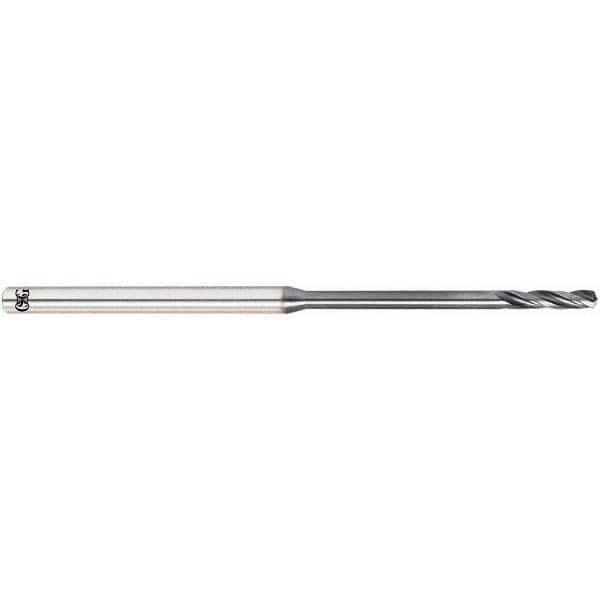

Extra Length Drill Bit: 0.0394″ Dia, 140 °, Solid Carbide EXO Finish, Spiral Flute, Straight-Cylindrical Shank, Series 5310
Item #: 60075173
Brand: OSG
Model #: 8569010
Product Specifications
| Drill Bit Size (mm) | 1.00 |
| Overall Length (mm) | 62.00 |
| Flute Length (mm) | 20.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | EXO |
| Drill Point Angle | 140 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | No |
| Flute Type | Spiral |
| Series | 5310 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.000 to -0.014 mm |
| Number Of Flutes | 3 |
| Web Configuration | Tapered |
| Drill Bit Size (Decimal Inch) | 0.0394 |
| Shank Diameter (mm) | 3.00 |
| Flute By Diameter Ratio | 20xD |
